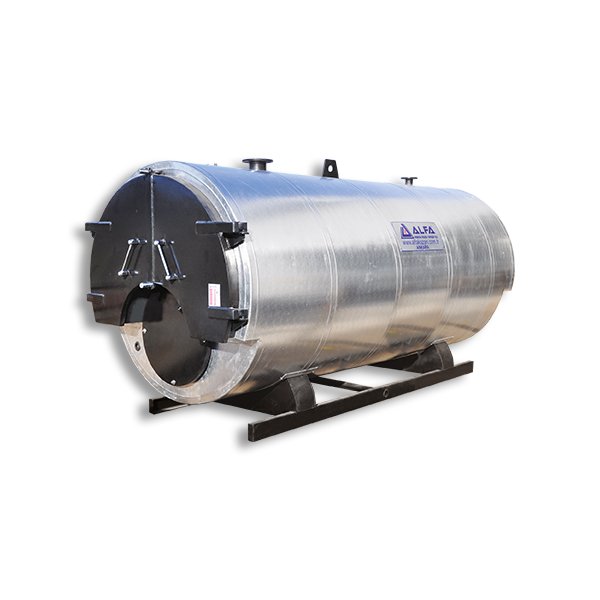

ASSF Liquid-Gas Fuel Cylinderic Scotch Type Three Transitive Heating Boilers - General Features
It burns liquid and gas fuel at high effi cacy
Combustion effi cacy is over 94% and more and it has an extremely sensitive design to the environment.
With low fuel consumption, it provides fuel saving and economy.
With three-transitive structure, it is more durable than the other boilers.
It is affected at the lowest level by construction providing equal expansion on all surfaces balancing heat transfer and by sheet deformations caused by thermic tensions.
By providing on-site manufacturing fl exibility, it can be inserted easily into narrow spaces.
Burnt gases cycling within the boiler in appropriate angles and speeds are discharged from the funnel and sheet deformation can be prevented as a conclusion of acid corrosion in the boiler.
Due to being three transitional of the boiler, counter pressure value in the boiler is very low and this means less power consumption in burner.
Design and manufacturing can be performed up to 40.000 Kcal / h — 10.000.000 Kcal / h.
Boilers have fi re-smoke pipes and the boiler pipes are welded to the mirrors.
Thanks to high design and manufacturing technology, it runs very silent and effi cient.
It can be remote wireless controlled (optionally).

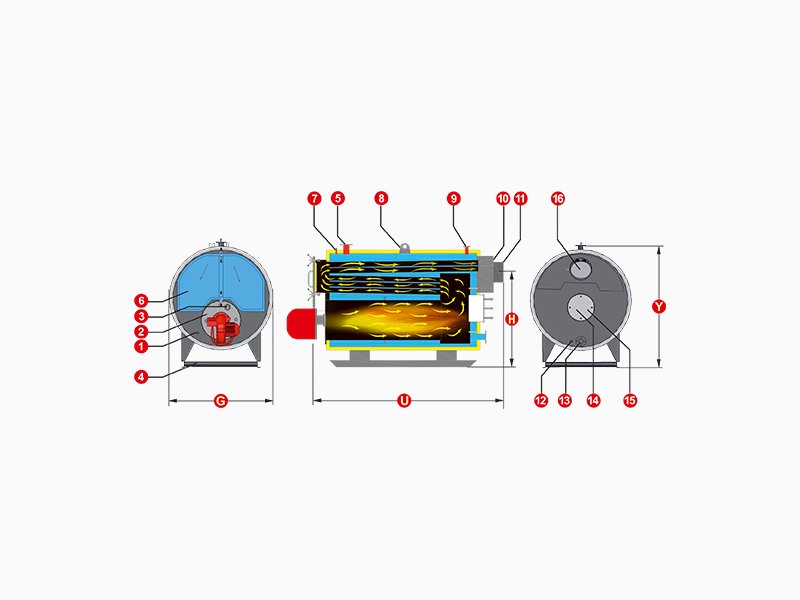

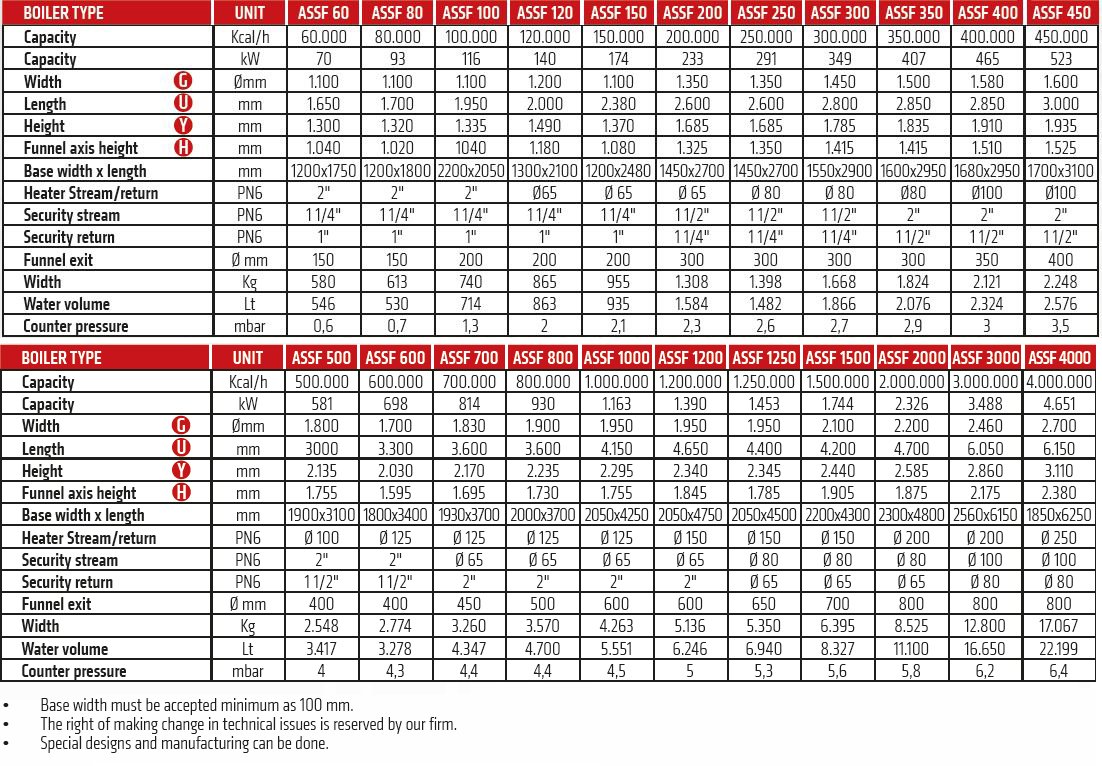

ASSF Liquid-Gas Fuel Cylinderic Scotch Type Three Transitive Heating Boilers - Technical Dimensions
